Guhring
9/16-18 UNF Cobalt Tap - Guhring 9039050142880
MFR# 9039050142880Series 3905
$53.51List $68.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size9/16-18
Description

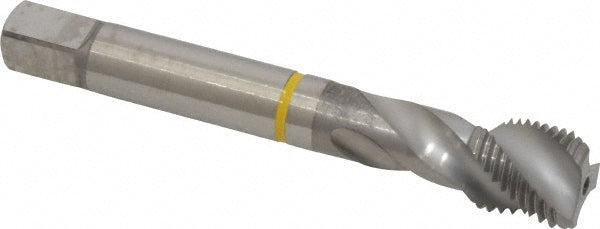

The Guhring 9039050142880 is a 9/16-18 UNF Cobalt tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAluminum & Other Non-Ferrous Metal; Gray Cast Iron; Malleable & Spheroidal Iron; Steel
Number of flutes3
Overall length in3-19/32
OversizeNo
Shank diameter0.4290
Square size0.3220
Threads per inch18
Thread directionRight Hand
Thread size in9/16-18
Thread standardUNF
