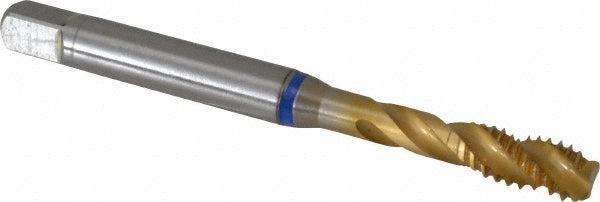

#12-24 UNC Powdered Metal Tap, TIN - Guhring 9039100054860
MFR# 9039100054860Series 3910
$28.76List $36.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#12-24
CoatingTIN
Description
The Guhring 9039100054860 is a #12-24 UNC Powdered Metal tap with a TIN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishTIN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialPowdered Metal
Material applicationAerospace Alloy; Stainless Steel
Neck length1.0240
Number of flutes3
Overall length in2-3/8
OversizeNo
Shank diameter0.2200
Square size0.1650
Threads per inch24
Thread directionRight Hand
Thread limitH3; H4
Thread size in#12-24
Thread standardUNC
