Guhring

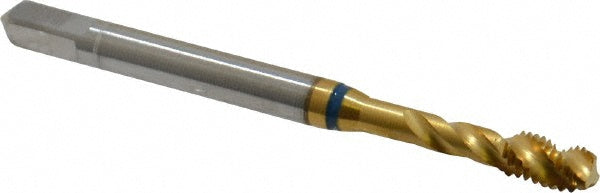

#8-36 UNF Powdered Metal Tap, TIN - Guhring 9039110041660
MFR# 9039110041660Series 3911
$28.30List $36.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#8-36
CoatingTIN
Description
The Guhring 9039110041660 is a #8-36 UNF Powdered Metal tap with a TIN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishTIN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialPowdered Metal
Material applicationAerospace Alloy; Stainless Steel
Neck length0.8270
Number of flutes3
Overall length in2-1/8
OversizeNo
Shank diameter0.1680
Square size0.1310
Threads per inch36
Thread directionRight Hand
Thread limitH2; H3
Thread size in#8-36
Thread standardUNF
