Guhring
1-1/8-7 UNC High-Speed Steel-E Spiral Point Tap - Guhring 9039130285750
MFR# 9039130285750Series 3913
$207.77List $266.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1-1/8-7
Description

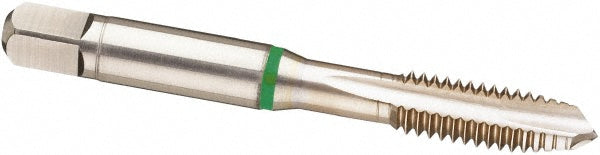

The Guhring 9039130285750 is a 1-1/8-7 UNC High-Speed Steel-E Spiral Point tap. 4 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel-E
Material applicationSteel
Number of flutes4
Overall length5.441
OversizeNo
Shank diameter0.8960
StyleSpiral Point
Threads per inch7
Thread directionRight Hand
Thread length1.7320
Thread limitH6/H7
Thread pitch0.1429
Thread size in1-1/8-7
Thread standardUNC
