Guhring

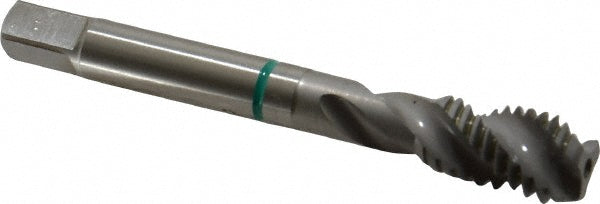

7/16-14 UNC Cobalt Tap - Guhring 9039190111130
MFR# 9039190111130Series 3919
$42.44List $54.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size7/16-14
Description
The Guhring 9039190111130 is a 7/16-14 UNC Cobalt tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloyed Steel; Unalloyed Steel
Number of flutes3
Overall length in3-5/32
OversizeNo
Shank diameter0.3230
Square size0.2420
Threads per inch14
Thread directionRight Hand
Thread length0.7090
Thread limitH5; H6
Thread size in7/16-14
Thread standardUNC
