Guhring

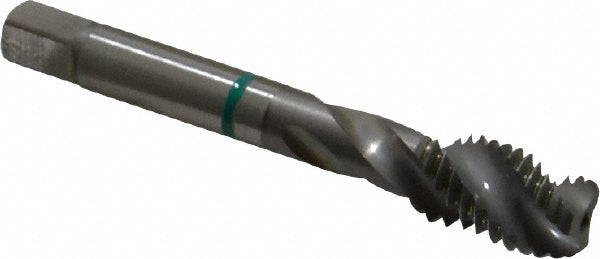

1/2-13 UNC Cobalt Tap - Guhring 9039190127000
MFR# 9039190127000Series 3919
$50.82List $65.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-13
Description
The Guhring 9039190127000 is a 1/2-13 UNC Cobalt tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloyed Steel; Unalloyed Steel
Number of flutes3
Overall length in3-3/8
OversizeNo
Shank diameter0.3670
Square size0.2750
Threads per inch13
Thread directionRight Hand
Thread length0.7870
Thread limitH5; H6
Thread size in1/2-13
Thread standardUNC
