Guhring

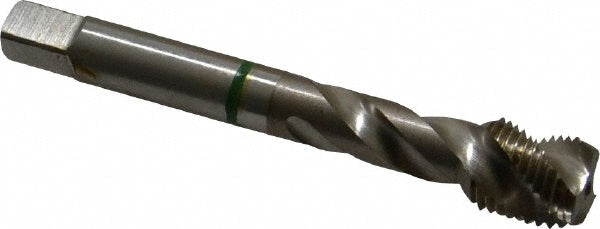

1/2-20 UNF Cobalt Tap - Guhring 9039200127000
MFR# 9039200127000Series 3920
$50.82List $65.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-20
Description
The Guhring 9039200127000 is a 1/2-20 UNF Cobalt tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloyed Steel; Unalloyed Steel
Number of flutes3
Overall length in3-3/8
OversizeNo
Shank diameter0.3670
Square size0.2750
Threads per inch20
Thread directionRight Hand
Thread length0.5120
Thread limitH4; H5
Thread size in1/2-20
Thread standardUNF
