Guhring

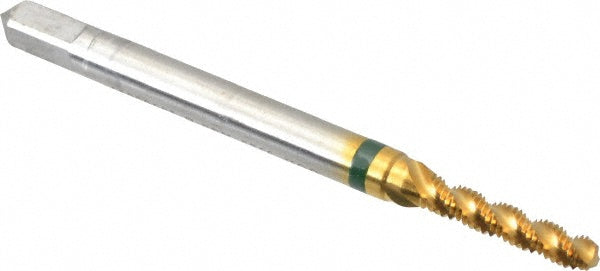

#3-56 UNF Cobalt Tap, TIN - Guhring 9039230025150
MFR# 9039230025150Series 3923
$31.31List $40.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#3-56
CoatingTIN
Description
The Guhring 9039230025150 is a #3-56 UNF Cobalt tap with a TIN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishTIN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloyed Steel; Unalloyed Steel
Neck length0.6310
Number of flutes3
Overall length in1-13/16
OversizeNo
Shank diameter0.1410
Square size0.1100
Threads per inch56
Thread directionRight Hand
Thread length0.2360
Thread limitH2; H3
Thread size in#3-56
Thread standardUNF
