Guhring
5/16-24 UNF Cobalt Tap, TIN - Guhring 9039230079380
MFR# 9039230079380Series 3922
$33.14List $42.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-24
CoatingTIN
Description

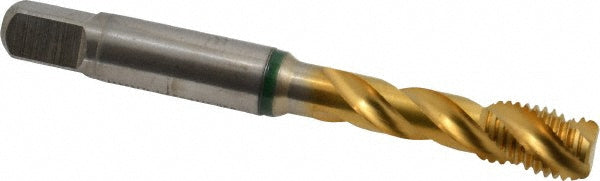

The Guhring 9039230079380 is a 5/16-24 UNF Cobalt tap with a TIN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishTIN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloyed Steel; Unalloyed Steel
Number of flutes3
Overall length in2-23/32
OversizeNo
Shank diameter0.3180
Square size0.2380
Threads per inch24
Thread directionRight Hand
Thread length0.4530
Thread size in5/16-24
Thread standardUNF
