Guhring

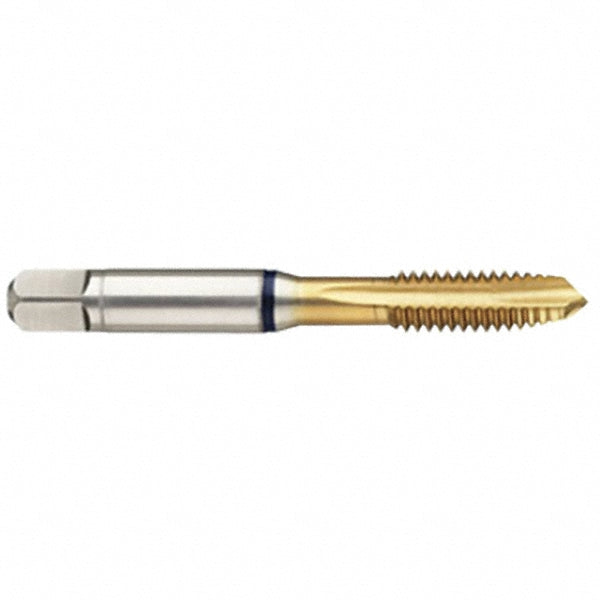

#4-40 UNC High Speed Steel Standard Tap, TiN - Guhring 9039280028450
MFR# 9039280028450Series 3928
$23.30List $29.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#4-40
CoatingTiN
Description
The Guhring 9039280028450 is a #4-40 UNC High Speed Steel Standard tap with a TiN finish. 2 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiN
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAluminum
Neck length0.7090
Number of flutes2
Overall length2.2050
Shank diameter0.1410
Shank length1.5000
Square size0.1100
Tapping depth0.7090
Tap typeStandard
Threads per inch40
Thread directionRight Hand
Thread limitH2; H3
Thread size in#4-40
Thread standardUNC
