Guhring
5/8-18 UNF Cobalt Tap - Guhring 9039320158750
MFR# 9039320158750Series 3932
$59.69List $76.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/8-18
Description

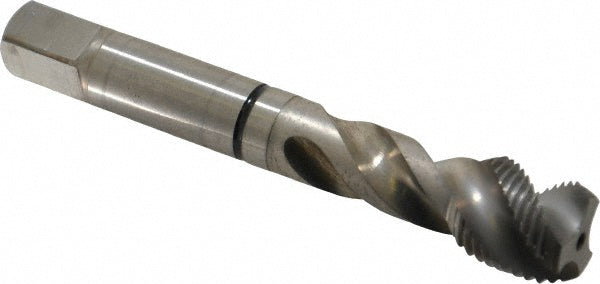

The Guhring 9039320158750 is a 5/8-18 UNF Cobalt tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAluminum; Aluminum Alloy
Number of flutes3
Overall length3.8110
OversizeNo
Shank diameter0.4800
Square size0.3600
Threads per inch18
Thread directionRight Hand
Thread limitH4; H5
Thread size in5/8-18
Thread standardUNF
