Guhring
#12-24 UNC Cobalt Machine Tap - Guhring 9039370054860
MFR# 9039370054860Series 3937
$29.05List $37.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size#12-24
Description

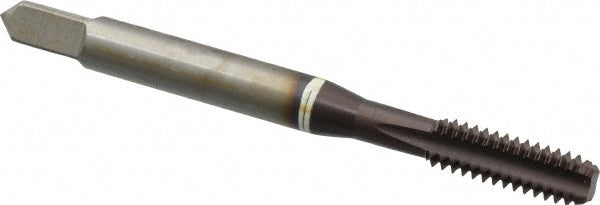

The Guhring 9039370054860 is a #12-24 UNC Cobalt Machine tap. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Class of fit2B
Coolant throughNo
MaterialCobalt
Material applicationAbrasive Material; Cast Iron
Number of flutes4
Overall length in2-3/8
OversizeNo
Shank diameter0.2200
Square size0.1650
Tapping depth1.0240
Tap typeMachine
Threads per inch24
Thread directionRight Hand
Thread limitH3; H4
Thread size in#12-24
Thread standardUNC
