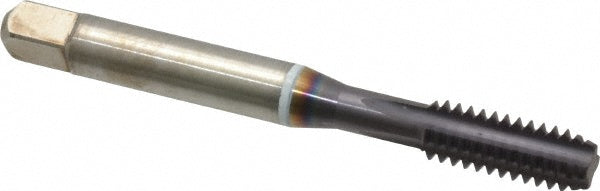

1/4-20 UNC Cobalt Machine Tap - Guhring 9039370063500
MFR# 9039370063500Series 3937
$32.61List $41.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1/4-20
Description
The Guhring 9039370063500 is a 1/4-20 UNC Cobalt Machine tap. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Class of fit2B
Coolant throughNo
MaterialCobalt
Material applicationAbrasive Material; Cast Iron
Number of flutes4
Overall length in2-1/2
OversizeNo
Shank diameter0.2550
Square size0.1910
Tapping depth1.1810
Tap typeMachine
Threads per inch20
Thread directionRight Hand
Thread limitH4; H5
Thread size in1/4-20
Thread standardUNC
