Guhring

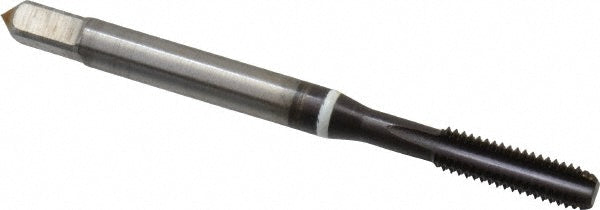

#10-32 UNF Cobalt Machine Tap - Guhring 9039380048260
MFR# 9039380048260Series 3937
$27.63List $35.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size#10-32
Description
The Guhring 9039380048260 is a #10-32 UNF Cobalt Machine tap. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Class of fit2B
Coolant throughNo
MaterialCobalt
Material applicationAbrasive Material; Cast Iron
Number of flutes4
Overall length in2-3/8
OversizeNo
Shank diameter0.1940
Square size0.1520
Tapping depth0.9450
Tap typeMachine
Threads per inch32
Thread directionRight Hand
Thread limitH3; H4
Thread size in#10-32
Thread standardUNF
