Guhring

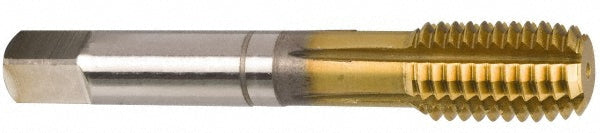

M4x0.7 Metric High-Speed Steel-E-CO Tap, TiN - Guhring 9039390040000
MFR# 9039390040000Series 3939
$29.11List $37.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Guhring 9039390040000 is a Metric High-Speed Steel-E-CO tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit6HX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-CO
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves4
Overall length2.1300
Shank diameter0.1680
Square size0.1310
Tapping depth0.8268
Thread directionRight Hand
Thread length0.3937
Thread limitD6; D7
Thread size (mm)M4x0.7
Thread standardMetric
