Guhring

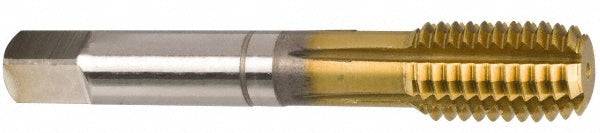

M14x2 Metric High-Speed Steel-E-CO Tap, TiN - Guhring 9039390140000
MFR# 9039390140000Series 3939
$78.77List $101.03
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Guhring 9039390140000 is a Metric High-Speed Steel-E-CO tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit6HX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-CO
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves6
Overall length3.5910
Shank diameter0.4290
Square size0.3220
Tapping depth1.4567
Thread directionRight Hand
Thread length1.0236
Thread limitD13; D14
Thread size (mm)M14x2
Thread standardMetric
