Guhring

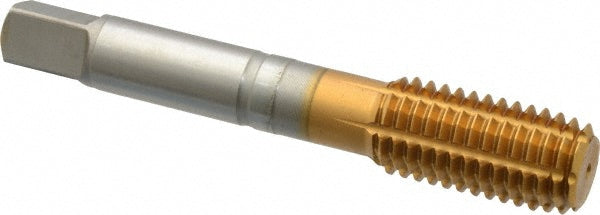

5/8-11 UNC High-Speed Steel-E-CO Tap, TiN - Guhring 9039400158750
MFR# 9039400158750Series 3940
$94.34List $121.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size5/8-11
CoatingTiN
Description
The Guhring 9039400158750 is a 5/8-11 UNC High-Speed Steel-E-CO tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit2BX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-CO
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves6
Overall length3.8110
Shank diameter0.4800
Square size0.3600
Thread directionRight Hand
Thread length1.1811
Thread limitH11; H12
Thread size in5/8-11
Thread standardUNC
