Guhring
#5-44 UNF High-Speed Steel-E-CO Tap, TiN - Guhring 9039410031750
MFR# 9039410031750Series 3941
$31.23List $40.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#5-44
CoatingTiN
Description

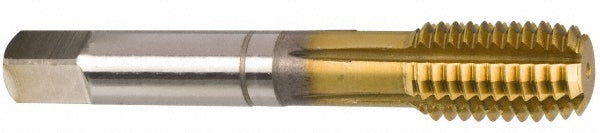

The Guhring 9039410031750 is a #5-44 UNF High-Speed Steel-E-CO tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit2BX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-CO
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves4
Overall length1.9409
Shank diameter0.1410
Square size0.1100
Tapping depth0.7087
Thread directionRight Hand
Thread length0.4331
Thread limitH4; H5
Thread size in#5-44
Thread standardUNF
