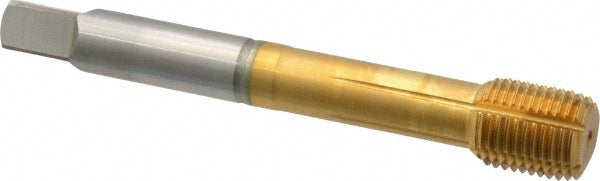

1/2-20 UNF High-Speed Steel-E-CO Tap, TiN - Guhring 9039410127000
MFR# 9039410127000Series 3941
$78.77List $101.03
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size1/2-20
CoatingTiN
Description
The Guhring 9039410127000 is a 1/2-20 UNF High-Speed Steel-E-CO tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit2BX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-CO
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves6
Overall length3.3820
Shank diameter0.3670
Square size0.2750
Thread directionRight Hand
Thread length0.7874
Thread limitH8; H9
Thread size in1/2-20
Thread standardUNF
