Guhring

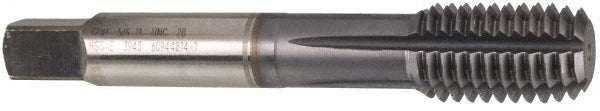

M5x0.8 Metric High-Speed Steel-E-CO Tap, TiCN - Guhring 9039420050000
MFR# 9039420050000Series 3942
$33.78List $43.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiCN
Description
The Guhring 9039420050000 is a Metric High-Speed Steel-E-CO tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit6HX
Coating finishTiCN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-CO
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves4
Overall length2.3820
Shank diameter0.1940
Square size0.1520
Tapping depth0.9449
Thread directionRight Hand
Thread length0.5118
Thread limitD7; D8
Thread size (mm)M5x0.8
Thread standardMetric
