Guhring

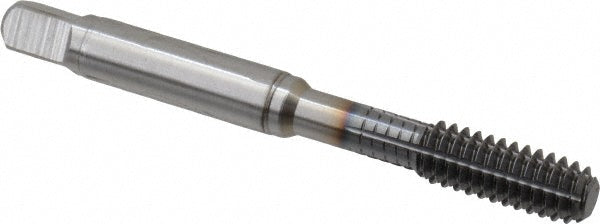

1/4-20 UNC High-Speed Steel-E-CO Tap, TiCN - Guhring 9039430063500
MFR# 9039430063500Series 3943
$41.54List $53.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size1/4-20
CoatingTiCN
Description
The Guhring 9039430063500 is a 1/4-20 UNC High-Speed Steel-E-CO tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit2BX
Coating finishTiCN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-CO
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves5
Overall length in2-1/2
Shank diameter0.2550
Square size0.1910
Tapping depth1.1811
Thread directionRight Hand
Thread length0.6299
Thread limitH7; H8
Thread size in1/4-20
Thread standardUNC
