Guhring

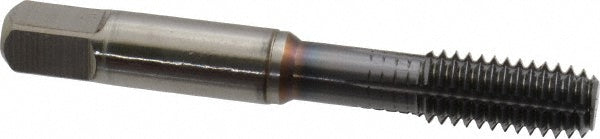

3/8-16 UNC High-Speed Steel-E-CO Tap, TiCN - Guhring 9039430095250
MFR# 9039430095250Series 3943
$59.82List $76.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size3/8-16
CoatingTiCN
Description
The Guhring 9039430095250 is a 3/8-16 UNC High-Speed Steel-E-CO tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit2BX
Coating finishTiCN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-CO
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves5
Overall length2.9410
Shank diameter0.3810
Square size0.2860
Tapping depth1.4567
Thread directionRight Hand
Thread length0.7874
Thread limitH8; H9
Thread size in3/8-16
Thread standardUNC
