Guhring
7/16-20 UNF High-Speed Steel-E-CO Tap, TiCN - Guhring 9039440111130
MFR# 9039440111130Series 3944
$71.82List $92.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size7/16-20
CoatingTiCN
Description

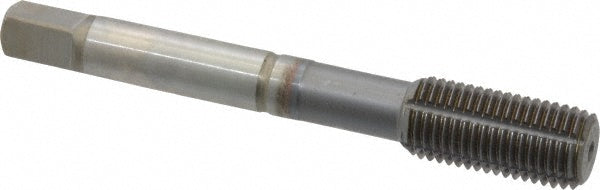

The Guhring 9039440111130 is a 7/16-20 UNF High-Speed Steel-E-CO tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit2BX
Coating finishTiCN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-CO
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves5
Overall length3.1610
Shank diameter0.3230
Square size0.2420
Thread directionRight Hand
Thread length0.8661
Thread limitH8; H9
Thread size in7/16-20
Thread standardUNF
