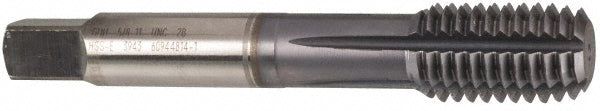

3/4-16 UNF High-Speed Steel-E-CO Tap, TiCN - Guhring 9039440190500
MFR# 9039440190500Series 3944
$130.73List $167.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size3/4-16
CoatingTiCN
Description
The Guhring 9039440190500 is a 3/4-16 UNF High-Speed Steel-E-CO tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit2BX
Coating finishTiCN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-CO
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves7
Overall length4.2520
Shank diameter0.5900
Square size0.4420
Thread directionRight Hand
Thread length0.9843
Thread limitH10; H11
Thread size in3/4-16
Thread standardUNF
