Guhring

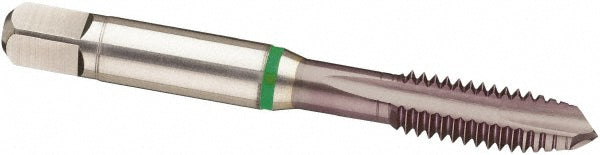

M2 x 0.40 Metric Cobalt Tap, TiCN - Guhring 9039450020000
MFR# 9039450020000Series 3945
$27.71List $35.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiCN
Description
The Guhring 9039450020000 is a Metric Cobalt tap with a TiCN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit6H
Coating finishTiCN
Coolant throughNo
MaterialCobalt
Material applicationAluminum; Gray Cast Iron; Malleable; Non-Ferrous Metal; Spheroidal Iron; Stainless Steel; Steel
Number of flutes3
Overall length1.7520
OversizeNo
Shank diameter0.1410
Thread directionRight Hand
Thread limitD2/D3
Thread pitch (mm)0.40
Thread size (mm)M2 x 0.40
Thread standardMetric
