Guhring
M20 x 2.50 Metric Cobalt Tap, TiCN - Guhring 9039450200000
MFR# 9039450200000Series 3945
$95.21List $122.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingTiCN
Description

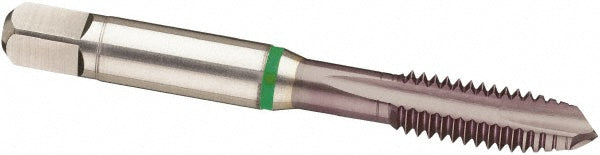

The Guhring 9039450200000 is a Metric Cobalt tap with a TiCN finish. 4 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit6H
Coating finishTiCN
Coolant throughNo
MaterialCobalt
Material applicationAluminum; Gray Cast Iron; Malleable; Non-Ferrous Metal; Spheroidal Iron; Stainless Steel; Steel
Number of flutes4
Overall length in4-15/32
OversizeNo
Shank diameter0.6520
Thread directionRight Hand
Thread limitD6/D7
Thread pitch (mm)2.50
Thread size (mm)M20 x 2.50
Thread standardMetric
