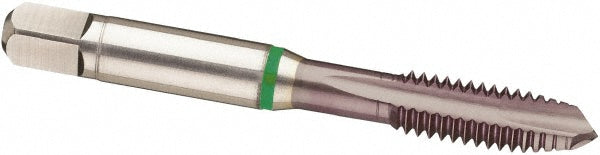

#4-40 UNC Cobalt Tap, TiCN - Guhring 9039460028450
MFR# 9039460028450Series 3946
$24.41List $31.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#4-40
CoatingTiCN
Description
The Guhring 9039460028450 is a #4-40 UNC Cobalt tap with a TiCN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialCobalt
Material applicationAluminum; Gray Cast Iron; Malleable; Non-Ferrous Metal; Spheroidal Iron; Stainless Steel; Steel
Number of flutes3
Overall length1.8820
OversizeNo
Shank diameter0.1410
Threads per inch40
Thread directionRight Hand
Thread limitH2/H3
Thread size in#4-40
Thread standardUNC
