Guhring
#10-24 UNC Cobalt Tap, TiCN - Guhring 9039460048260
MFR# 9039460048260Series 3946
$22.65List $29.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-24
CoatingTiCN
Description

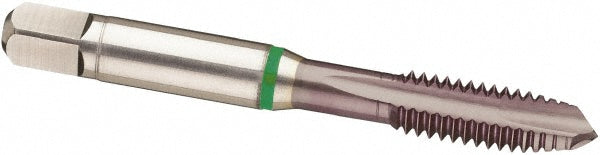

The Guhring 9039460048260 is a #10-24 UNC Cobalt tap with a TiCN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialCobalt
Material applicationAluminum; Gray Cast Iron; Malleable; Non-Ferrous Metal; Spheroidal Iron; Stainless Steel; Steel
Number of flutes3
Overall length2.3820
OversizeNo
Shank diameter0.1940
Threads per inch24
Thread directionRight Hand
Thread limitH3/H4
Thread size in#10-24
Thread standardUNC
