Guhring

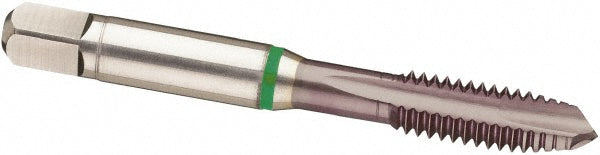

3/8-16 UNC Cobalt Tap, TiCN - Guhring 9039460095250
MFR# 9039460095250Series 3946
$32.98List $42.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingTiCN
Description
The Guhring 9039460095250 is a 3/8-16 UNC Cobalt tap with a TiCN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialCobalt
Material applicationAluminum; Gray Cast Iron; Malleable; Non-Ferrous Metal; Spheroidal Iron; Stainless Steel; Steel
Number of flutes3
Overall length2.9410
OversizeNo
Shank diameter0.3810
Threads per inch16
Thread directionRight Hand
Thread limitH5/H6
Thread size in3/8-16
Thread standardUNC
