Guhring

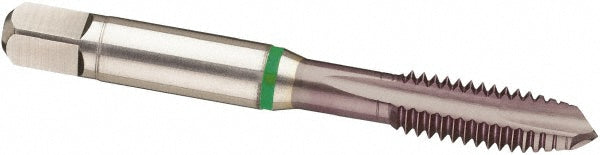

1-8 UNC Cobalt Tap, TiCN - Guhring 9039460254000
MFR# 9039460254000Series 3946
$136.65List $175.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1-8
CoatingTiCN
Description
The Guhring 9039460254000 is a 1-8 UNC Cobalt tap with a TiCN finish. 4 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialCobalt
Material applicationAluminum; Gray Cast Iron; Malleable; Non-Ferrous Metal; Spheroidal Iron; Stainless Steel; Steel
Number of flutes4
Overall length in5-1/8
OversizeNo
Shank diameter0.8000
Threads per inch8
Thread directionRight Hand
Thread limitH6/H7
Thread size in1-8
Thread standardUNC
