Guhring
1-1/2-6 UNC Cobalt Tap, TiCN - Guhring 9039460381000
MFR# 9039460381000Series 3946
$340.38List $436.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Thread size1-1/2-6
CoatingTiCN
Description

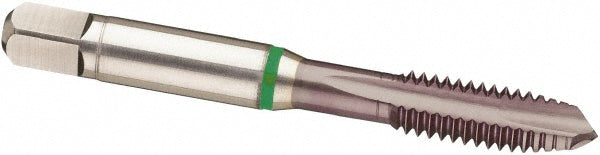

The Guhring 9039460381000 is a 1-1/2-6 UNC Cobalt tap with a TiCN finish. 6 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialCobalt
Material applicationAluminum; Gray Cast Iron; Malleable; Non-Ferrous Metal; Spheroidal Iron; Stainless Steel; Steel
Number of flutes6
Overall length6.3780
OversizeNo
Shank diameter1.2330
Threads per inch6
Thread directionRight Hand
Thread limitH7/H8
Thread size in1-1/2-6
Thread standardUNC
