Guhring

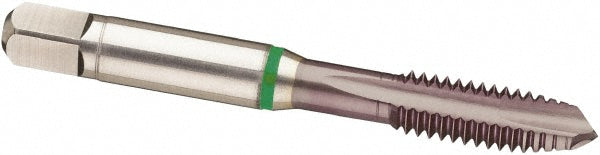

1/4-28 UNF Cobalt Tap, TiCN - Guhring 9039470063500
MFR# 9039470063500Series 3947
$23.56List $30.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-28
CoatingTiCN
Description
The Guhring 9039470063500 is a 1/4-28 UNF Cobalt tap with a TiCN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialCobalt
Material applicationAluminum; Gray Cast Iron; Malleable; Non-Ferrous Metal; Spheroidal Iron; Stainless Steel; Steel
Number of flutes3
Overall length in2-1/2
OversizeNo
Shank diameter0.2550
Threads per inch28
Thread directionRight Hand
Thread limitH3/H4
Thread size in1/4-28
Thread standardUNF
