Guhring

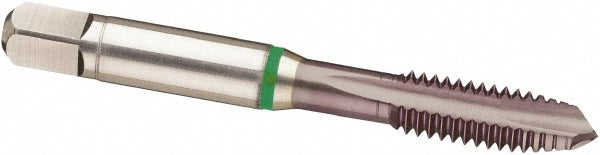

1-1/8-12 UNF Cobalt Tap, TiCN - Guhring 9039470285750
MFR# 9039470285750Series 3947
$224.85List $288.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1-1/8-12
CoatingTiCN
Description
The Guhring 9039470285750 is a 1-1/8-12 UNF Cobalt tap with a TiCN finish. 4 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialCobalt
Material applicationAluminum; Gray Cast Iron; Malleable; Non-Ferrous Metal; Spheroidal Iron; Stainless Steel; Steel
Number of flutes4
Overall length5.4410
OversizeNo
Shank diameter0.8960
Threads per inch12
Thread directionRight Hand
Thread limitH6/H7
Thread size in1-1/8-12
Thread standardUNF
