Guhring

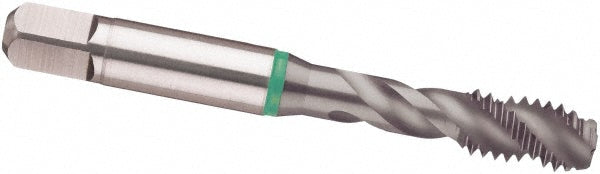

#3-48 UNC Cobalt Tap, TiCN - Guhring 9039490025150
MFR# 9039490025150Series 3949
$31.31List $40.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#3-48
CoatingTiCN
Description
The Guhring 9039490025150 is a #3-48 UNC Cobalt tap with a TiCN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloy Steel; Unalloyed Steel
Neck length in1/2
Number of flutes3
Overall length1.8110
OversizeNo
Primary workpiece materialSteel
Shank diameter0.1410
Square size0.1100
Threads per inch48
Thread directionRight Hand
Thread limitH2; H3
Thread size in#3-48
Thread standardUNC
