Guhring

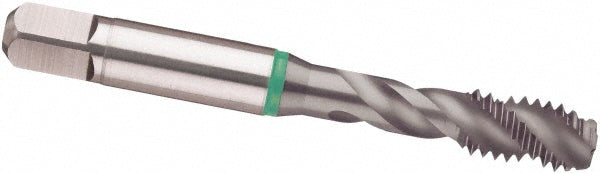

3/8-16 UNC Cobalt Tap, TICN - Guhring 9039490095250
MFR# 9039490095250Series 3949
$40.66List $52.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingTICN
Description
The Guhring 9039490095250 is a 3/8-16 UNC Cobalt tap with a TICN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishTICN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloyed & Unalloyed Steel
Neck length1.4560
Number of flutes3
Overall length2.7200
OversizeNo
Shank diameter0.3810
Square size0.2860
Threads per inch16
Thread directionRight Hand
Thread limitH5; H6
Thread size in3/8-16
Thread standardUNC
