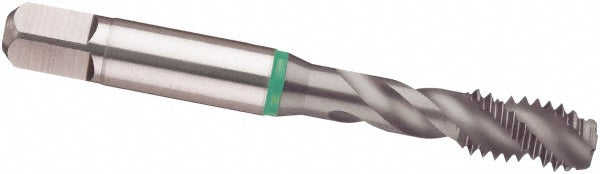

7/8-14 UNF Cobalt Tap, TICN - Guhring 9039500222250
MFR# 9039500222250Series 3950
$97.97List $125.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size7/8-14
CoatingTICN
Description
The Guhring 9039500222250 is a 7/8-14 UNF Cobalt tap with a TICN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishTICN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloyed & Unalloyed Steel
Number of flutes4
Overall length4.6890
OversizeNo
Shank diameter0.6970
Square size0.5230
Threads per inch14
Thread directionRight Hand
Thread limitH6; H7
Thread size in7/8-14
Thread standardUNF
