Guhring

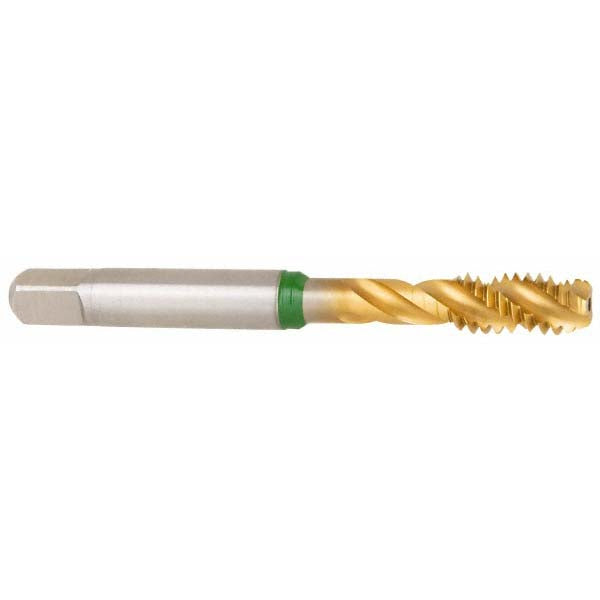

7/16-20 UNC; UNF Cobalt Tap, TIN - Guhring 9039550111130
MFR# 9039550111130Series 3954
$119.41List $153.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size7/16-20
CoatingTIN
Description
The Guhring 9039550111130 is a 7/16-20 UNC; UNF Cobalt tap with a TIN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishTIN
Coolant throughYes
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAlloyed Steel; Unalloyed Steel
Number of flutes3
Overall length3.1570
OversizeNo
Shank diameter0.3230
Square size0.2420
Threads per inch20
Thread directionRight Hand
Thread length1.4300
Thread limitH4; H5
Thread size in7/16-20
Thread standardUNC; UNF
