Guhring

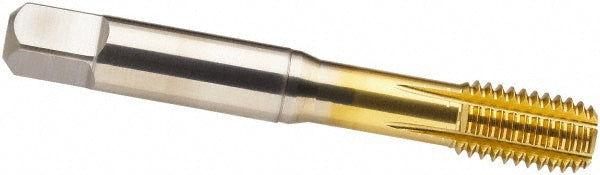

#4-40 UNC High-Speed Steel-E-CO Tap, TiN - Guhring 9039590028450
MFR# 9039590028450Series 3959
$32.10List $41.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#4-40
CoatingTiN
Description
The Guhring 9039590028450 is a #4-40 UNC High-Speed Steel-E-CO tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit2BX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-CO
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves4
Overall length1.8819
Shank diameter0.1410
Square size0.1100
Tapping depth0.7087
Thread directionRight Hand
Thread length0.4331
Thread limitH4; H5
Thread size in#4-40
Thread standardUNC
