Guhring
3/8-16 UNC High-Speed Steel-E-CO Tap, TiN - Guhring 9039590095250
MFR# 9039590095250Series 3959
$55.88List $71.67
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size3/8-16
CoatingTiN
Description

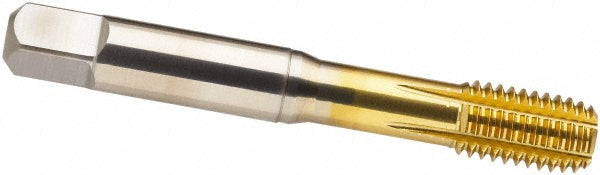

The Guhring 9039590095250 is a 3/8-16 UNC High-Speed Steel-E-CO tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit2BX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-CO
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves5
Overall length2.9410
Shank diameter0.3810
Square size0.2860
Tapping depth1.4567
Thread directionRight Hand
Thread length0.7874
Thread limitH8; H9
Thread size in3/8-16
Thread standardUNC
