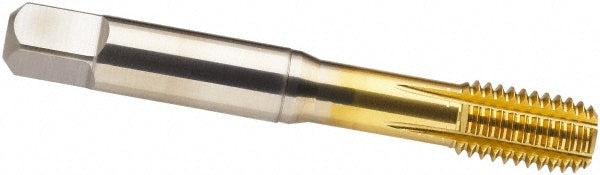

7/16-14 UNC High-Speed Steel-E-CO Tap, TiN - Guhring 9039590111130
MFR# 9039590111130Series 3959
$61.17List $78.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size7/16-14
CoatingTiN
Description
The Guhring 9039590111130 is a 7/16-14 UNC High-Speed Steel-E-CO tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit2BX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-CO
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves5
Overall length3.1610
Shank diameter0.3230
Square size0.2420
Thread directionRight Hand
Thread length0.8661
Thread limitH9; H10
Thread size in7/16-14
Thread standardUNC
