Guhring

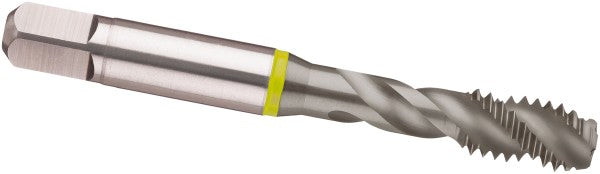

M8 x 1.25 Metric Cobalt Tap, MolyGlide - Guhring 9039630080000
MFR# 9039630080000Series 3963
$28.24List $36.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingMolyGlide
Description
The Guhring 9039630080000 is a Metric Cobalt tap with a MolyGlide finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coating finishMolyGlide
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAluminum & Other Non-Ferrous Metal; Gray Cast Iron; Malleable & Spheroidal Iron; Steel
Neck length1.3770
Number of flutes3
Overall length2.7200
OversizeNo
Shank diameter0.3180
Square size0.2380
Thread directionRight Hand
Thread limitD4; D5
Thread pitch (mm)1.25
Thread size (mm)M8 x 1.25
Thread standardMetric
