Guhring

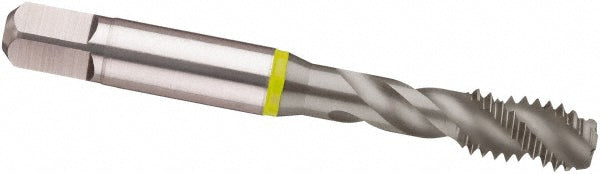

#5-40 UNC Cobalt Tap, MolyGlide - Guhring 9039640031750
MFR# 9039640031750Series 3964
$29.39List $37.69
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#5-40
CoatingMolyGlide
Description
The Guhring 9039640031750 is a #5-40 UNC Cobalt tap with a MolyGlide finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishMolyGlide
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAluminum; Non-Ferrous Metal; Gray Cast Iron; Malleable Iron; Spheroidal Iron; Steel
Number of flutes3
Overall length1.9410
OversizeNo
Shank diameter0.1410
Square size0.1100
Threads per inch40
Thread directionRight Hand
Thread limitH2; H3
Thread size in#5-40
Thread standardUNC
