Guhring

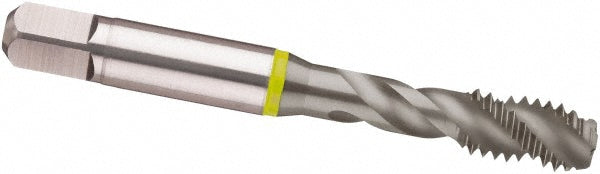

5/16-18 UNC Cobalt Tap, MolyGlide - Guhring 9039640079380
MFR# 9039640079380Series 3964
$28.24List $36.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-18
CoatingMolyGlide
Description
The Guhring 9039640079380 is a 5/16-18 UNC Cobalt tap with a MolyGlide finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishMolyGlide
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAluminum & Other Non-Ferrous Metal; Gray Cast Iron; Malleable & Spheroidal Iron; Steel
Number of flutes3
Overall length2.7200
OversizeNo
Shank diameter0.3180
Square size0.2380
Threads per inch18
Thread directionRight Hand
Thread limitH4; H5
Thread size in5/16-18
Thread standardUNC
