Guhring
1/2-13 UNC Cobalt Tap, MolyGlide - Guhring 9039640127000
MFR# 9039640127000Series 3964
$63.23List $81.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-13
CoatingMolyGlide
Description

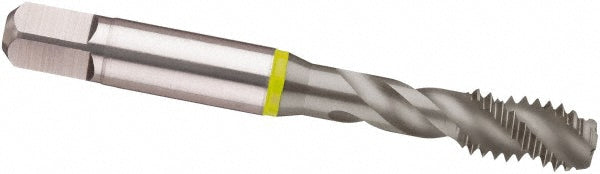

The Guhring 9039640127000 is a 1/2-13 UNC Cobalt tap with a MolyGlide finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishMolyGlide
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAluminum & Other Non-Ferrous Metal; Gray Cast Iron; Malleable & Spheroidal Iron; Steel
Number of flutes3
Overall length3.3810
OversizeNo
Shank diameter0.3670
Square size0.2750
Threads per inch13
Thread directionRight Hand
Thread limitH5; H6
Thread size in1/2-13
Thread standardUNC
