Guhring
5/8-11 UNC Cobalt Tap, Proprietary - Guhring 9039640158750
MFR# 9039640158750Series 3964
$62.68List $80.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/8-11
CoatingProprietary
Description

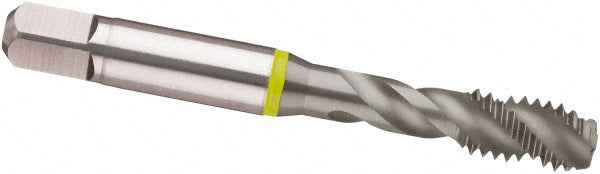

The Guhring 9039640158750 is a 5/8-11 UNC Cobalt tap with a Proprietary finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishProprietary
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAluminum; Non-Ferrous Metal; Gray Cast Iron; Malleable Iron; Spheroidal Iron; Steel
Number of flutes3
Overall length3.8110
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.4800
Square size0.3600
Threads per inch11
Thread directionRight Hand
Thread limitH5; H6
Thread size in5/8-11
Thread standardUNC
