Guhring
1-8 UNC Cobalt Tap, Proprietary - Guhring 9039640254000
MFR# 9039640254000Series 3964
$137.44List $176.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1-8
CoatingProprietary
Description

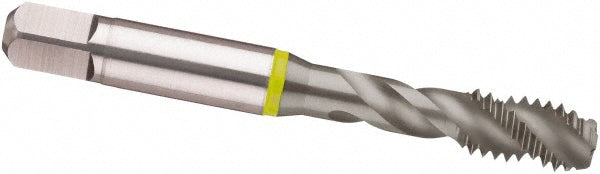

The Guhring 9039640254000 is a 1-8 UNC Cobalt tap with a Proprietary finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishProprietary
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAluminum; Non-Ferrous Metal; Gray Cast Iron; Malleable Iron; Spheroidal Iron; Steel
Number of flutes4
Overall length5.1300
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.8000
Square size0.6000
Threads per inch8
Thread directionRight Hand
Thread limitH6; H7
Thread size in1-8
Thread standardUNC
