Guhring

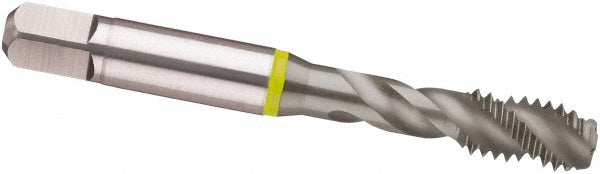

1/4-28 UNF Cobalt Tap, MolyGlide - Guhring 9039650063500
MFR# 9039650063500Series 3965
$22.52List $28.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-28
CoatingMolyGlide
Description
The Guhring 9039650063500 is a 1/4-28 UNF Cobalt tap with a MolyGlide finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishMolyGlide
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle40
MaterialCobalt
Material applicationAluminum & Other Non-Ferrous Metal; Gray Cast Iron; Malleable & Spheroidal Iron; Steel
Number of flutes3
Overall length in2-1/2
OversizeNo
Shank diameter0.2550
Square size0.1910
Threads per inch28
Thread directionRight Hand
Thread limitH3; H4
Thread size in1/4-28
Thread standardUNF
