Guhring

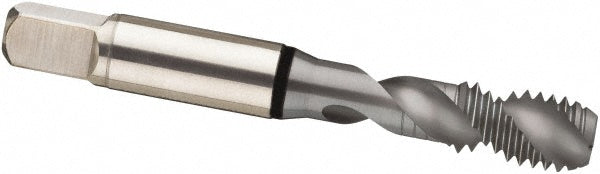

#8-32 UNC Cobalt Tap, MolyGlide - Guhring 9039700041660
MFR# 9039700041660Series 3970
$25.29List $32.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#8-32
CoatingMolyGlide
Description
The Guhring 9039700041660 is a #8-32 UNC Cobalt tap with a MolyGlide finish. 2 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishMolyGlide
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAluminum & Aluminum Alloy
Neck length0.8270
Number of flutes2
Overall length2.2050
OversizeNo
Shank diameter0.1680
Square size0.1310
Threads per inch32
Thread directionRight Hand
Thread limitH3; H4
Thread size in#8-32
Thread standardUNC
