Guhring

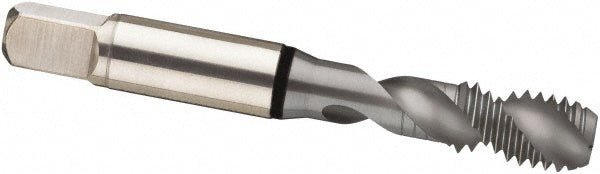

1/4-20 UNC Cobalt Tap, MolyGlide - Guhring 9039700063500
MFR# 9039700063500Series 3970
$26.75List $34.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size1/4-20
CoatingMolyGlide
Description
The Guhring 9039700063500 is a 1/4-20 UNC Cobalt tap with a MolyGlide finish. 2 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishMolyGlide
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAluminum & Aluminum Alloy
Neck length1.1810
Number of flutes2
Overall length2.3820
OversizeNo
Shank diameter0.2550
Square size0.1910
Threads per inch20
Thread directionRight Hand
Thread limitH4; H5
Thread size in1/4-20
Thread standardUNC
