Guhring

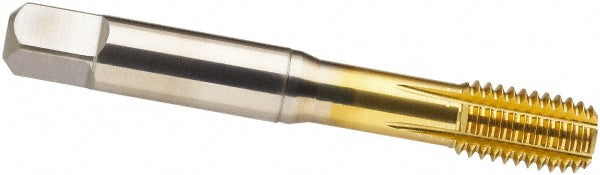

M10x1 Metric Fine High-Speed Steel-E-CO Tap, TiN - Guhring 9039750100050
MFR# 9039750100050Series 3975
$54.74List $70.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Guhring 9039750100050 is a Metric Fine High-Speed Steel-E-CO tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit6HX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-CO
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material application codeP; M; K; N
Oil grooves5
Overall length2.9410
Shank diameter0.3810
Square size0.2860
Tapping depth1.3780
Thread directionRight Hand
Thread length0.6299
Thread limitD7; D8
Thread size (mm)M10x1
Thread standardMetric Fine
